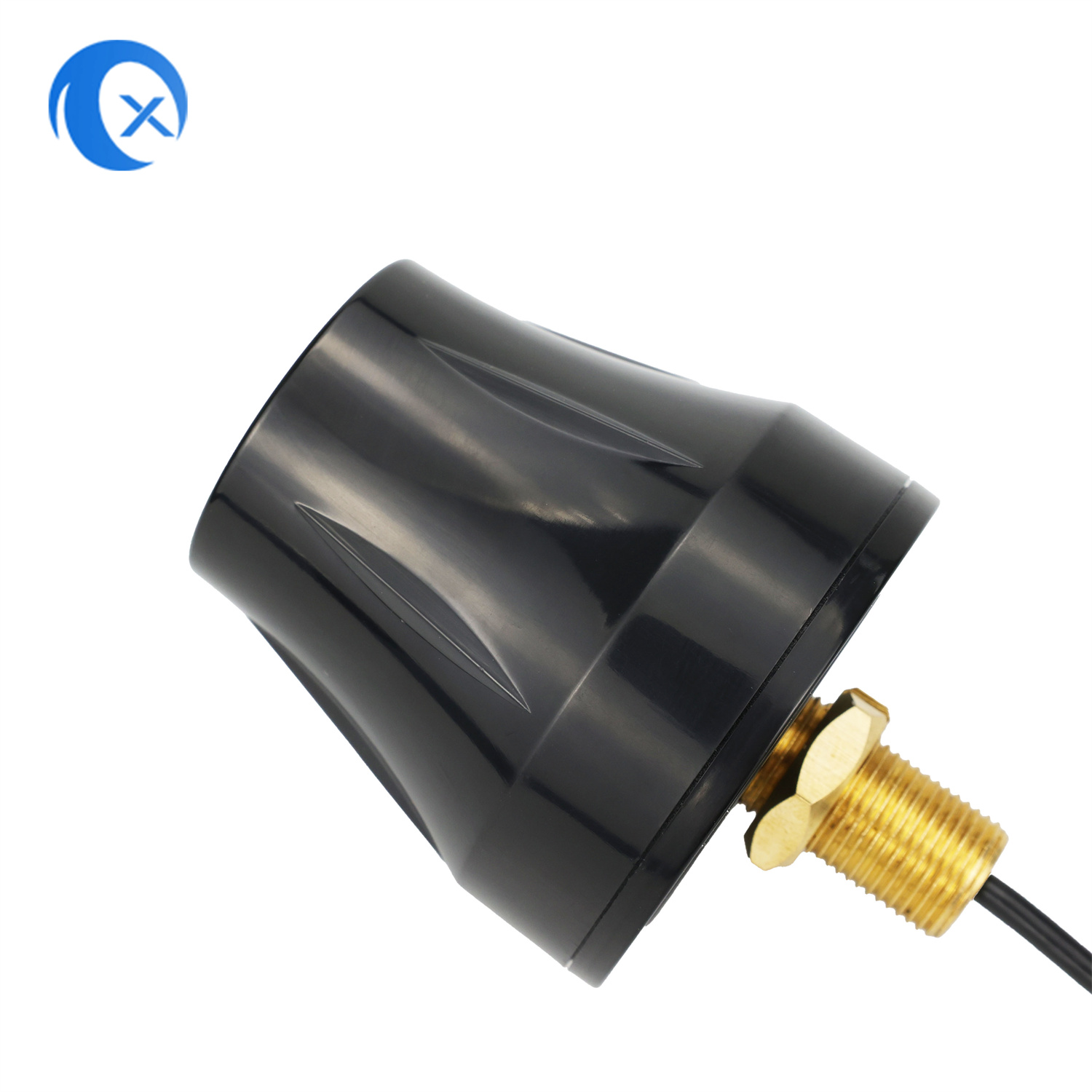

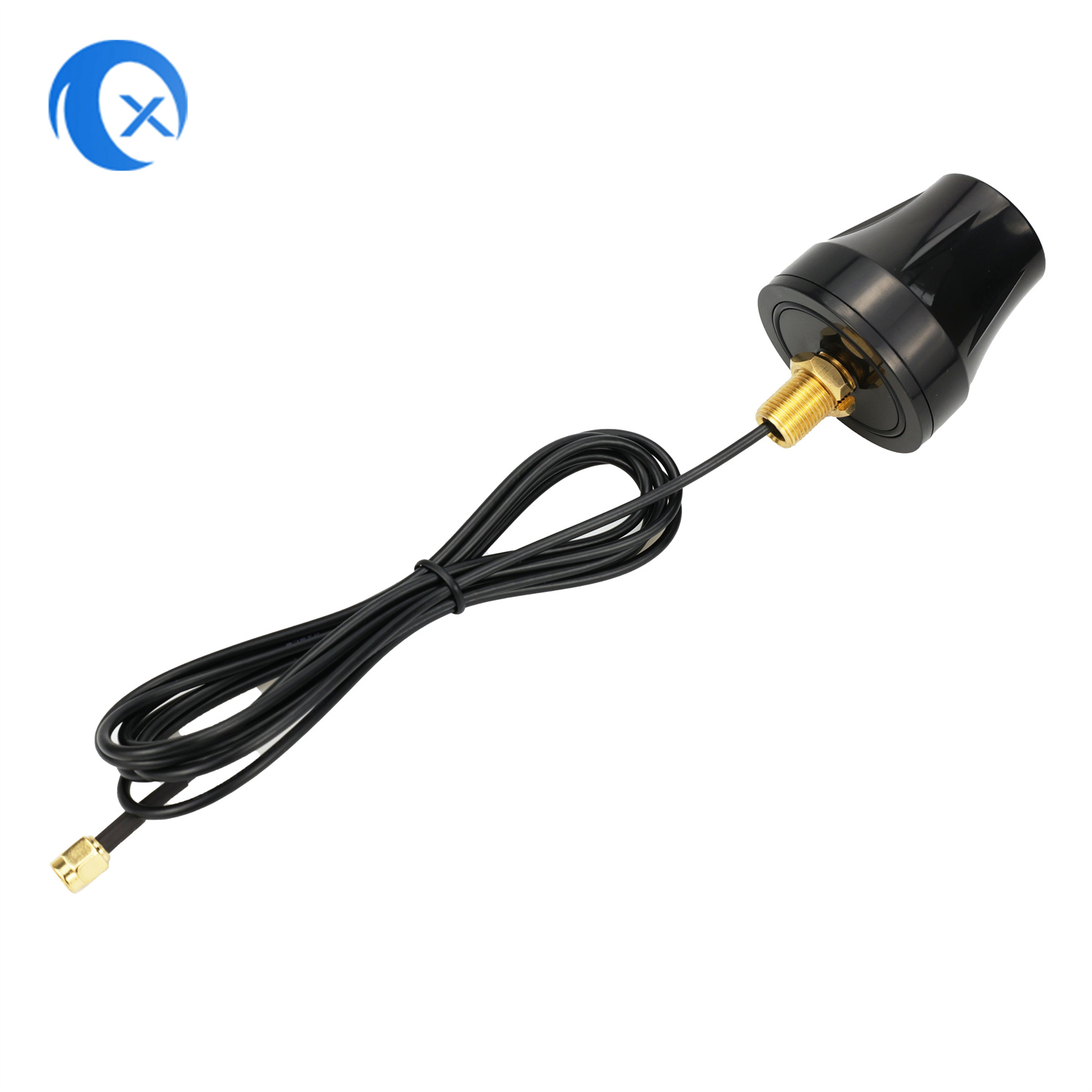

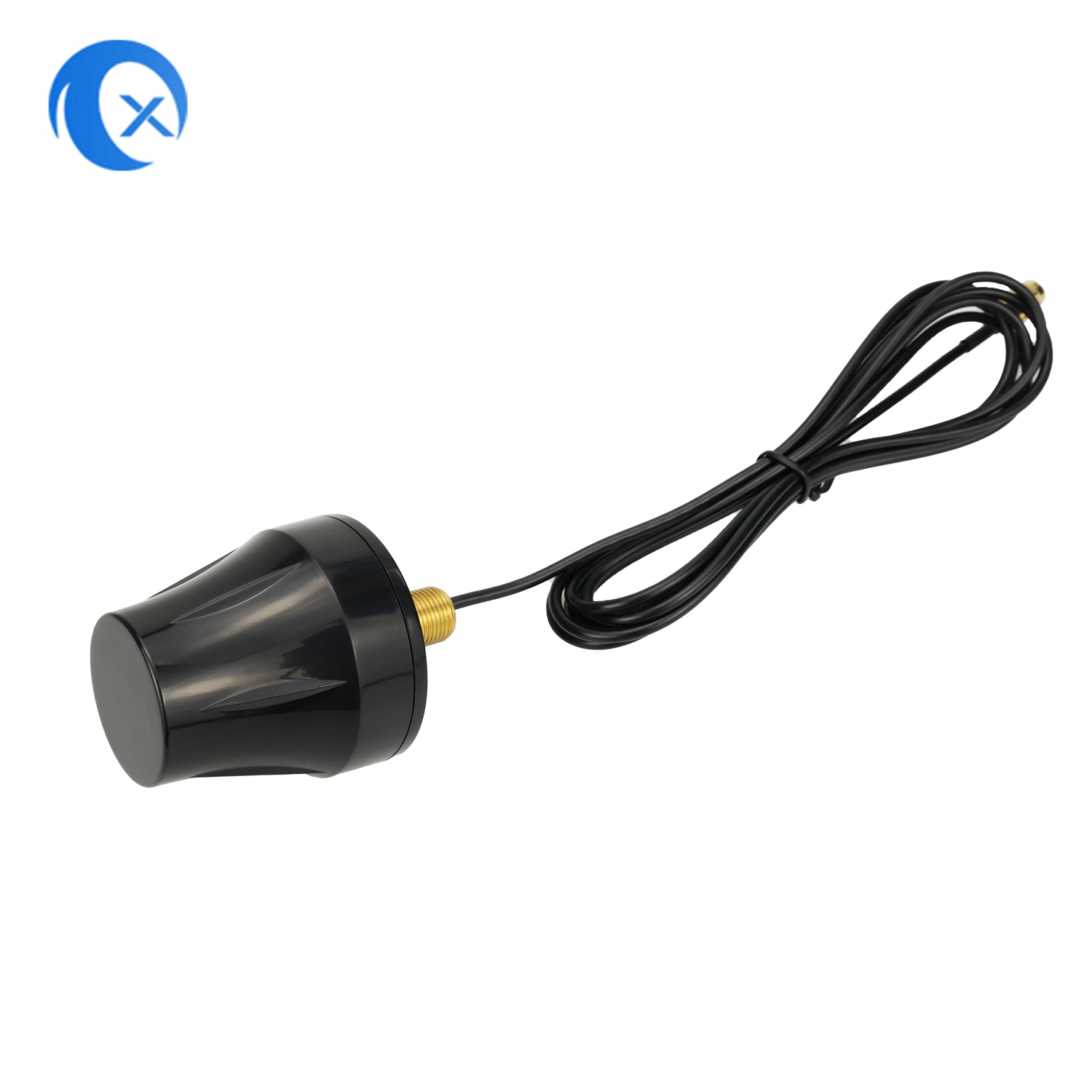

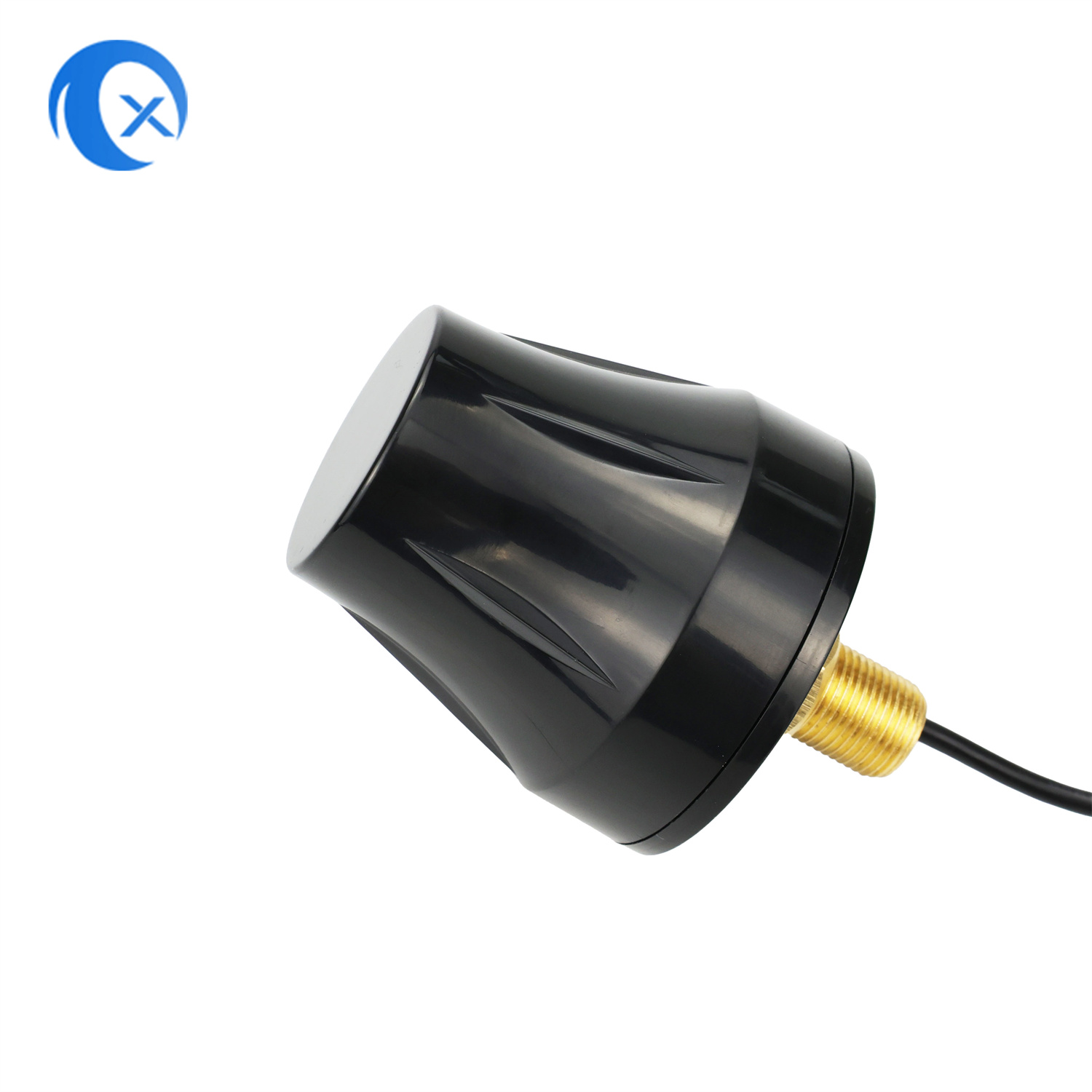

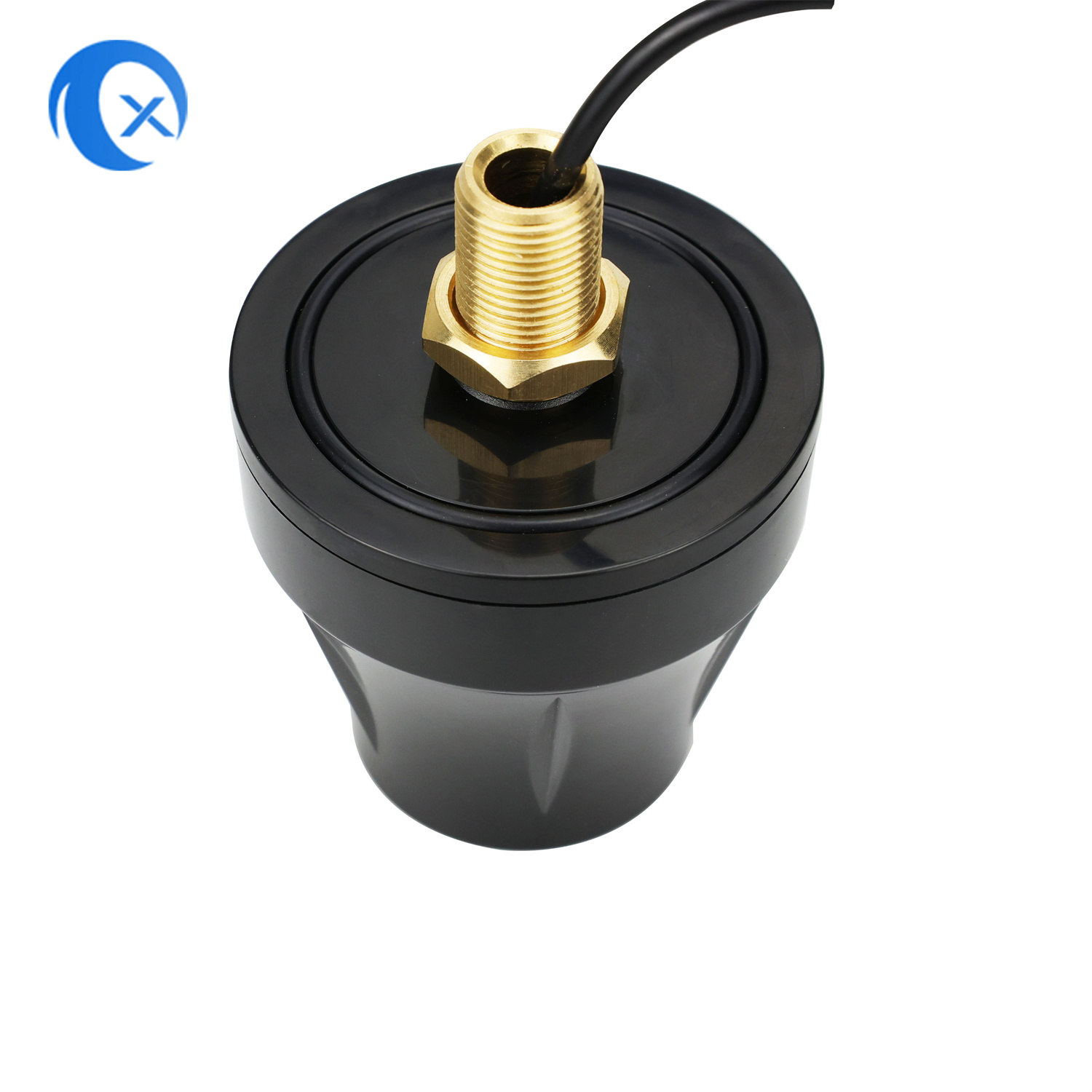

Manufactured by DONGGUAN TENGXIANG ELECTRONICS CO.,LTD, the TX-MH006 is a heavy-duty outdoor 4G LTE wall mount antenna. Equipped with a sturdy fixed bracket and SMA male connector, this external aerial features simple installation, strong weather resistance and stable signal transmission. It is perfectly compatible with 4G LTE routers, cellular gateways, home phones and modems. Designed for outdoor and industrial wireless environments, the TX-MH006 effectively boosts cellular signal strength and provides reliable long-distance wireless communication solutions for commercial and household users.
1Universal Cellular Link
Covers the full 4G LTE spectrum (698-2700MHz), delivering stable omnidirectional radiation for IoT connectivity.
2Rugged Dual-Fix Design
Integrates an M12 metal bolt with premium 3M9448A foam adhesive, ensuring a tamper-resistant, watertight seal against metal or plastic enclosures.
3Extended Installation Range
The 3m cable allows the antenna to be placed at the optimal signal point (e.g., atop a high enclosure) while keeping the router securely housed inside.
Outdoor Electrical Cabinets

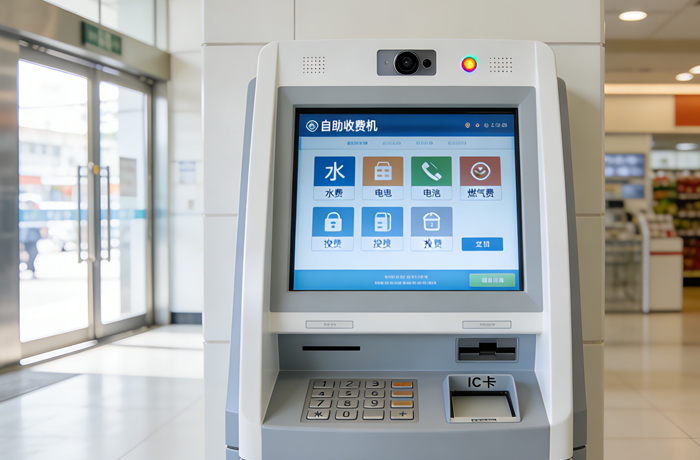

Smart Vending Kiosks
Environmental Monitoring Stations
EV Chargers
Smart City Infrastructure
| Category | Technical Parameters | Specifications |
| Frequency Range | 4G LTE Full Band | 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz |
| RF Performance | Peak Gain | 5.0 dBi |
| V.S.W.R | ≤ 2.0 | |
| Polarization | Linear | |
| Mechanical Spec | Connector Type | SMA Male (Plug) |
| Cable Type | RG174 Coaxial | |
| Cable Length | 3000mm (Customizable) | |
| Mounting | M12 Screw + 3M Tape | |
| Dimensions | Dia 46mm / Height 15.5mm | |
| Reliability | Operating Temp | -40℃ ~ +85℃ |
| Compliance | RoHS 2.0 / REACH |
