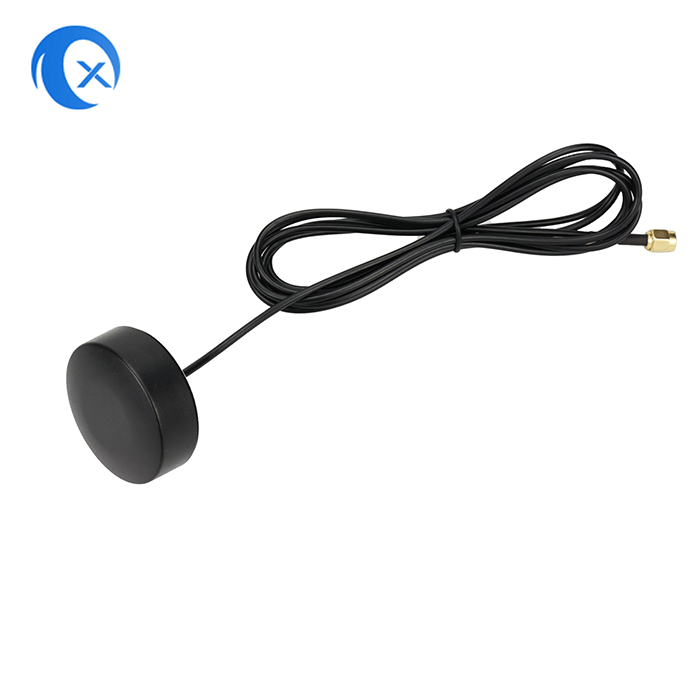

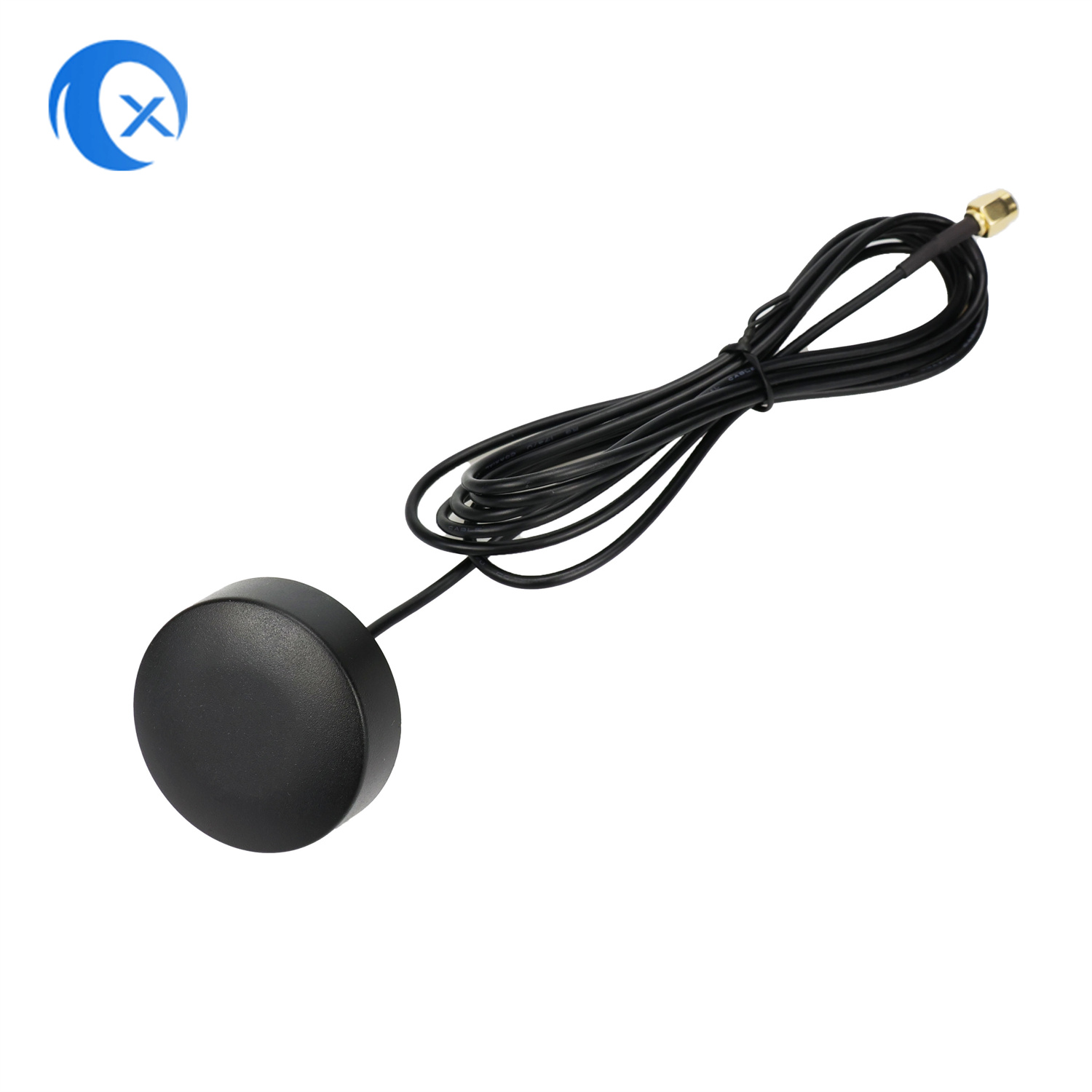

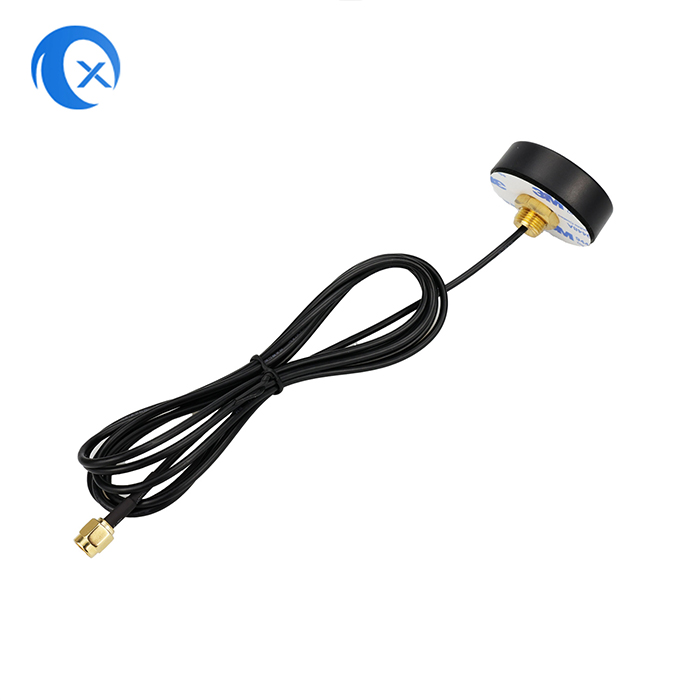

The TX-MH005 is a high-performance, ultra-slim 4G LTE Puck antenna with a 15.5mm profile. This version features an extended 3-meter (3000mm) RG174 cable, providing the necessary reach for complex industrial cabinet installations where the internal modem is located far from the mounting surface.
1Universal Cellular Link
Covers the full 4G LTE spectrum (824-2700MHz), delivering stable omnidirectional radiation for IoT connectivity.
2Rugged Dual-Fix Design

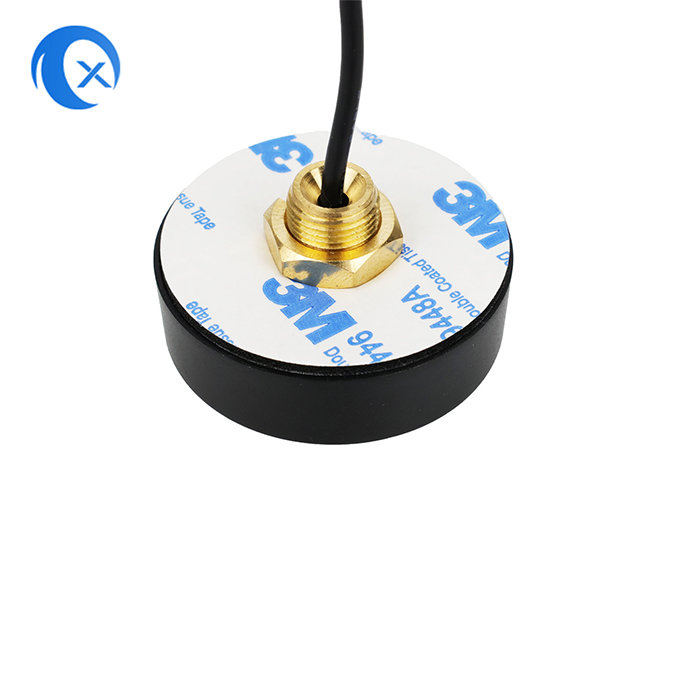

Integrates an M12 metal bolt with premium 3M9448A foam adhesive, ensuring a tamper-resistant, watertight seal against metal or plastic enclosures.
3Extended Installation Range
The 3m cable allows the antenna to be placed at the optimal signal point (e.g., atop a high enclosure) while keeping the router securely housed inside.
Outdoor Electrical Cabinets
Smart Vending Kiosks
Environmental Monitoring Stations
EV Chargers
Smart City Infrastructure
| Category | Technical Parameters | Specifications |
| Frequency Range | 4G LTE Full Band | 824-960 / 1710-2700 MHz |
| RF Performance | Peak Gain | 0.65 dBi |
| V.S.W.R | ≤ 2.5 / ≤ 2.0 | |
| Polarization | Linear | |

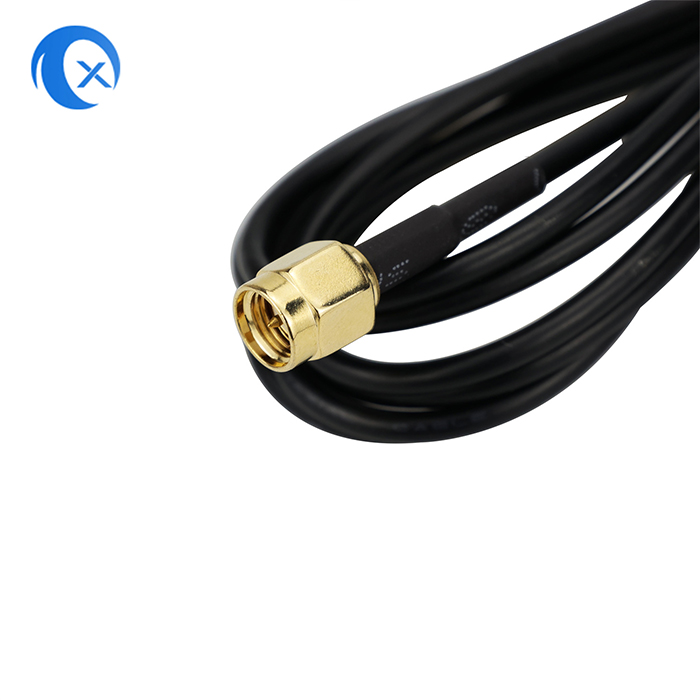

| Mechanical Spec | Connector Type | SMA Male (Plug) |
| Cable Type | RG174 Coaxial | |
| Cable Length | 3000mm (Customizable) | |
| Mounting | M12 Screw + 3M Tape | |
| Dimensions | Dia 46mm / Height 15.5mm | |
| Reliability | Operating Temp | -40℃ ~ +85℃ |
| Compliance | RoHS 2.0 / REACH |
