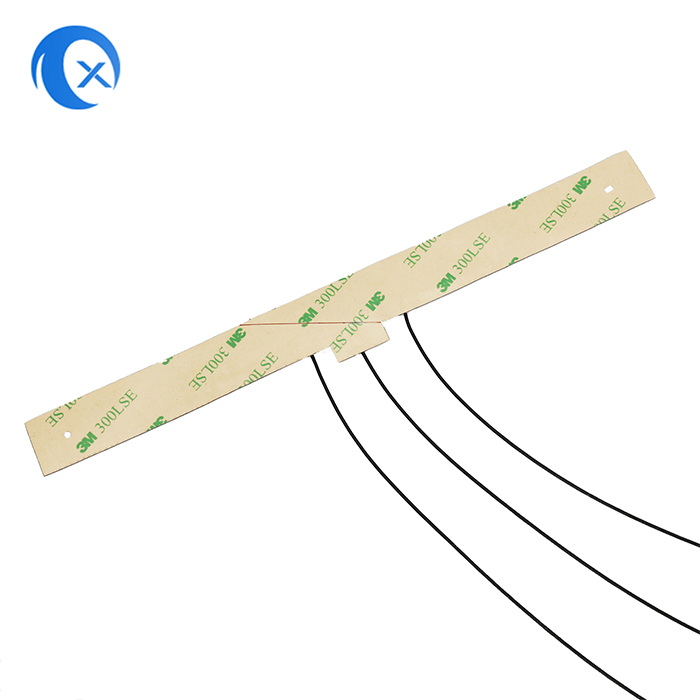

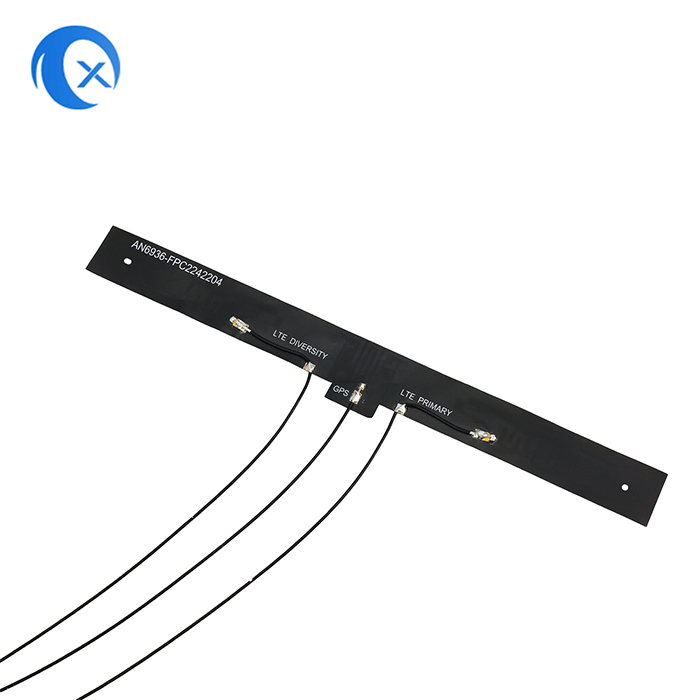

The TX-FPC007 is a high-performance 3-in-1 internal FPC antenna specifically engineered for ultra-thin and space-constrained electronic devices. By integrating 4G LTE Primary, 4G Diversity, and GPS/GNSS elements into a flexible circuit with a 3-lead independent output, it provides a comprehensive wireless solution for modern smart terminals.
1Full Constellation Support
Covers 698-2700MHz for global 4G/LTE connectivity (MIMO supported) and 1559-1610MHz for precise multi-mode positioning (GPS/BDS/GLONASS).
2Flexible & Slim Design
Utilizing high-quality FPC substrate, this antenna can be curved or adhered to internal device housings, drastically reducing the physical footprint.
3High-Integrity Connection

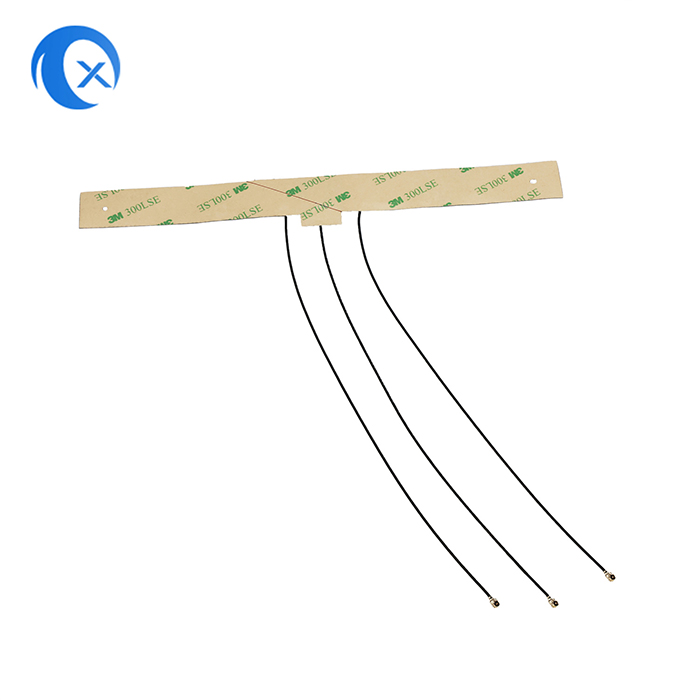

Equipped with 200mm low-loss 1.13mm cables and IPEX connectors, ensuring robust signal integrity and easy "Plug-and-Play" integration into IoT hardware.
Industrial Handheld PDA
Mobile POS Terminal
Intelligent Security Monitoring
Smart Wearable Device

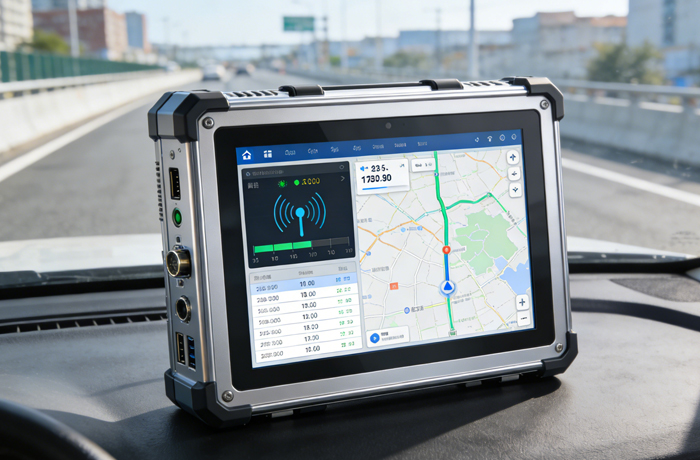

Mobile Drive Test Terminal
Miniaturized IoT Gateway
| Category | Technical Parameters | Specifications |
| Frequency Range | 4G LTE (Primary/Diversity) | 698~960 / 1710~2700 MHz |
| GPS / GNSS | 1559 ~ 1610 MHz | |
| RF Performance | Peak Gain | 4G: ~2.42 dBi / GPS: ~2.3 dBi |
| V.S.W.R | ≤ 3.5 (4G LTE) / ≤ 2.0 (GPS) | |
| Polarization | Linear | |
| Impedance | 50 Ω | |
| Mechanical Spec | Material Type | Flexible Printed Circuit (FPC) |
| Lead Type | 3-Lead Independent Output | |
| Cable Type | 1.13mm Black Coaxial Cable | |
| Connector | IPEX (MHF) | |
| Cable Length | L=200mm (Customizable) | |
| Reliability | Operating Temp | -40℃ ~ +85℃ |
| Ingress Protection | N/A (Internal Component) | |
| Storage Temp | -45℃ ~ +100℃ |
24H Rapid Response | Free Sample Available
