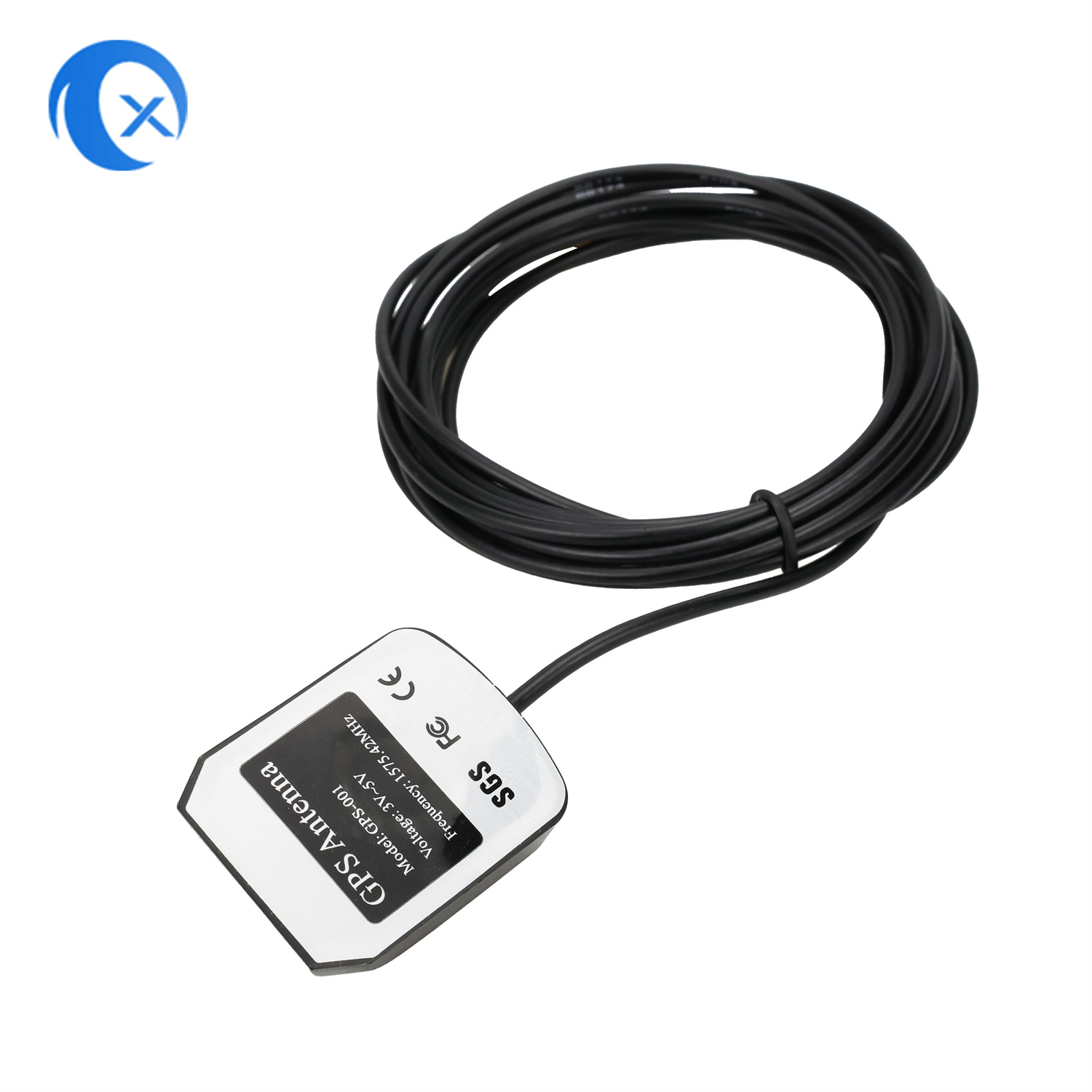

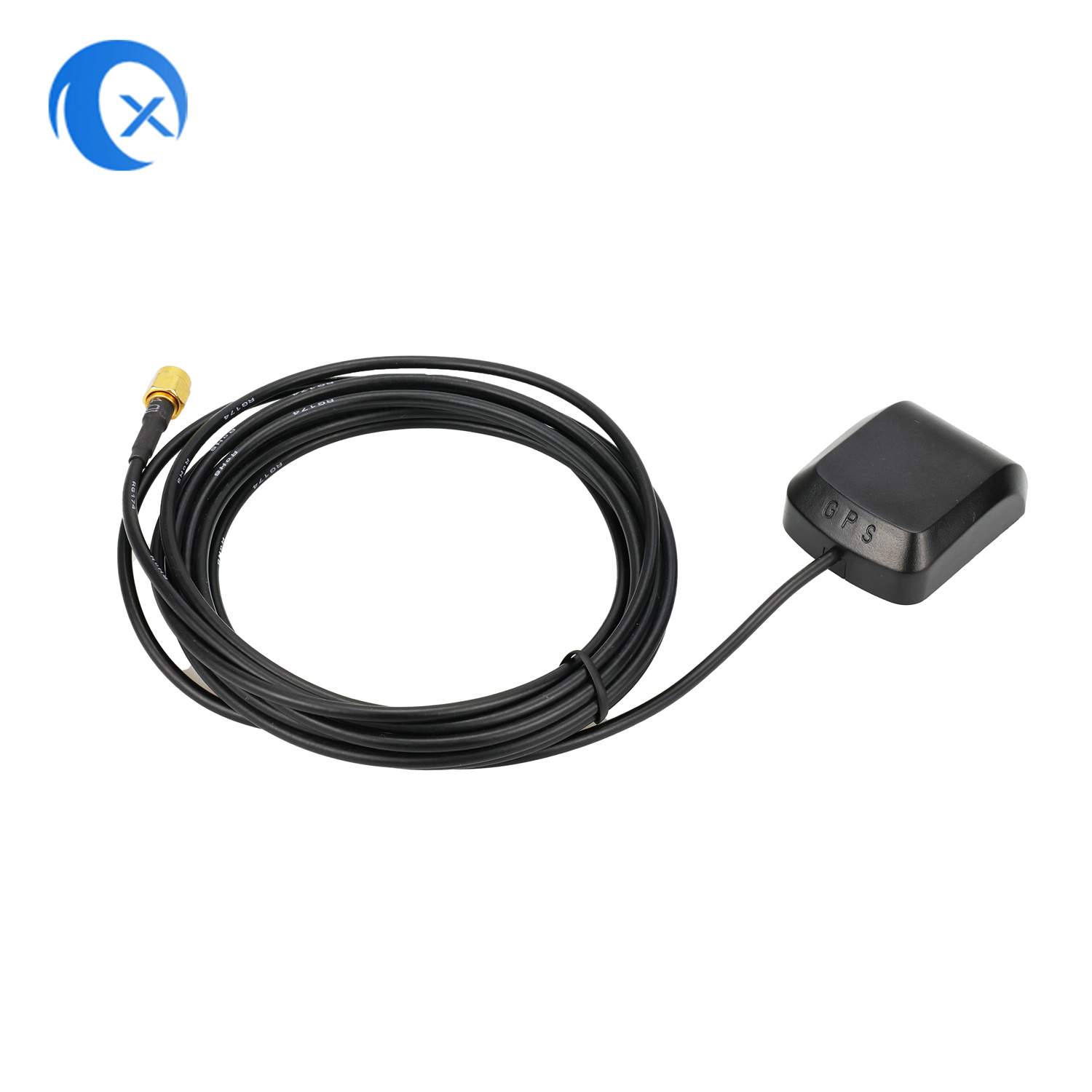

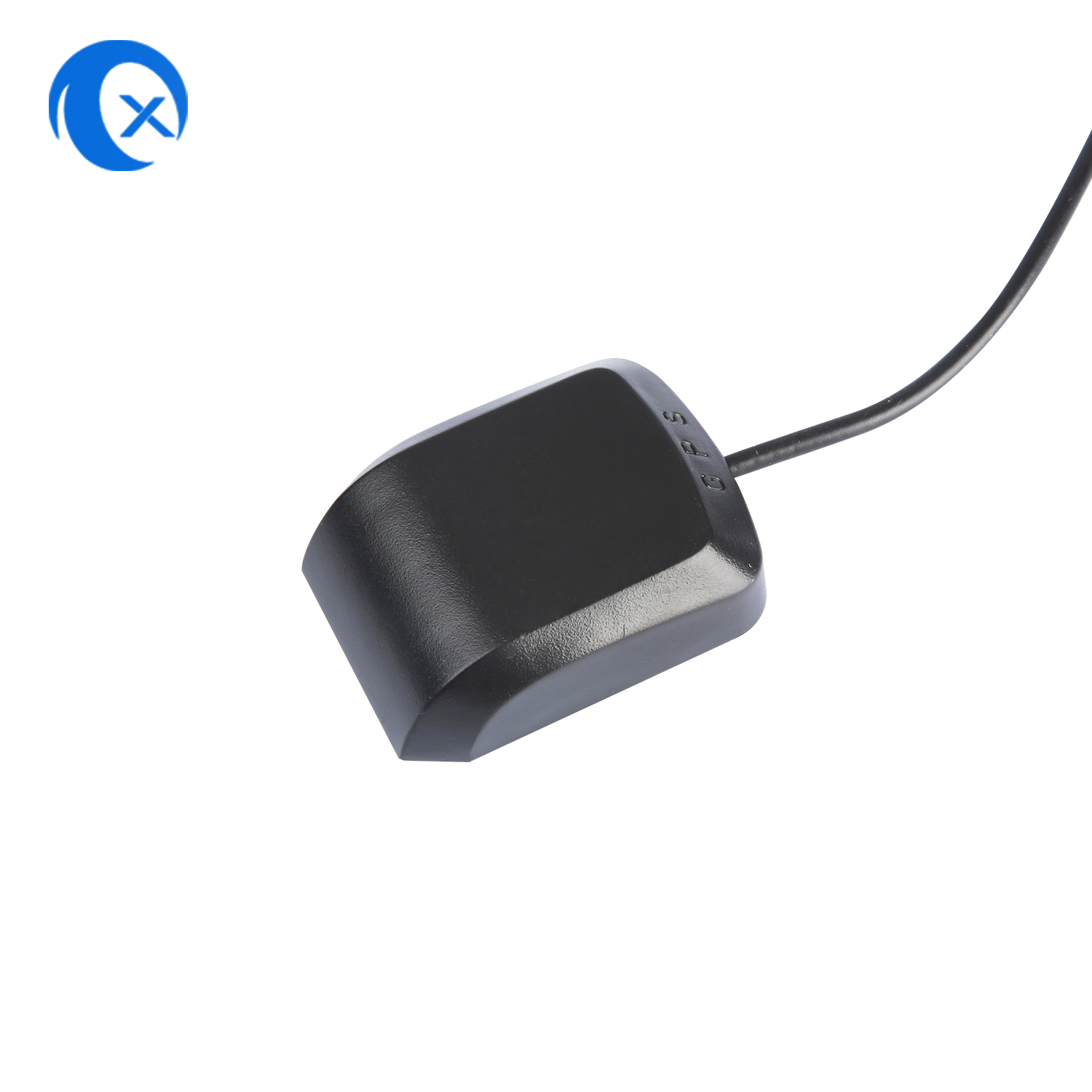

The TX-AG002 is a professional-grade GNSS active antenna independently developed by Tengxiang Electronics, supporting both GPS and GLONASS constellations. Designed for industrial monitoring and automotive navigation, it offers exceptional multi-path interference rejection and rapid signal lock. As a direct R&D manufacturer, we provide "Tailor-Made" services, allowing for customized cable lengths, connectors, and gain profiles tailored to your specific application.
1Advanced In-house LNA
Features a high-performance, self-developed LNA with 28dBi gain, ensuring elite signal sensitivity even across long cable runs.
2Dual-Mode Precision
Simultaneous tracking of GPS L1 and GLONASS L1. Delivers reliable positioning and faster TTFF in dense industrial zones or urban environments.
3Flexible Installation (3m Cable)
Equipped with 3 meters of premium RG174 cable. Ideal for long-range routing on trucks, specialty vehicles, and outdoor gateways.
4Industrial Reliability
Built with durable ABS housing and supporting a standard 3.0V-5.0V range. Engineered for long-term stability in extreme outdoor conditions.
| Category | Parameter | Specification |
| Electrical | Frequency Range | 1574.42MHz ~ 1610MHz (GPS + GLONASS) |
| Active Gain | 33dB ± 3dB (Including LNA) | |
| Polarization | RHCP | |
| V.S.W.R | ≤ 2.0 | |
| Impedance | 50 Ohm | |
| Power | Working Voltage | 3.0V ~ 5.0V DC |
| Working Current | ≤ 15mA | |
| Mechanical | Dimensions | 42 * 36 * 14 mm |
| Connector | SMA-J (SMA Male) | |
| Cable Type | RG174, L=3000mm | |
| Mounting | Magnetic / Adhesive Mount | |
| Environmental | Operating Temp | -40℃ ~ +85℃ |
| Humidity | 95% No condensing | |
| Compliance | RoHS 2.0 |
24H Rapid Response | Free Sample Available
