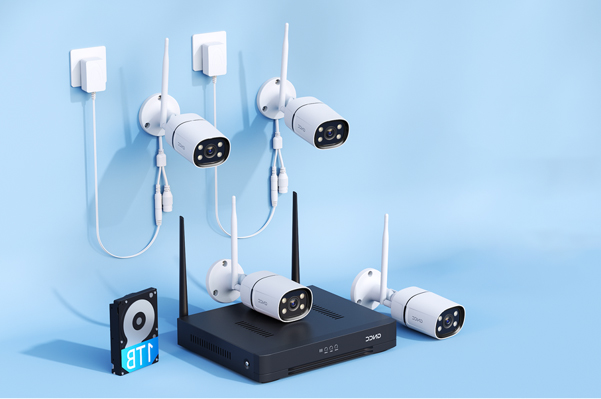

Security cameras require reliable wireless communication to transmit video footage, but indoor and commercial environments often present challenges with wall penetration and signal interference. A global leading security camera brand faced these issues when developing their latest surveillance product line, leading them to partner with Tengxiang Electronics—an experienced OEM/ODM antenna manufacturer.

Client Background

The client is a renowned security equipment brand with a global presence, offering home and commercial surveillance cameras. Their new product line required an embedded WiFi antenna with strong wall-penetrating capability, long transmission range, and compact design to fit the cameras sleek appearance.

Core Pain Points

1. Weak Wall Penetration: Traditional antennas failed to transmit signals through concrete walls, limiting indoor surveillance coverage.

2. Signal Interference: Nearby WiFi devices and electronic equipment caused video lag and pixelation.

3. Size Constraints: The antenna needed to be embedded inside the cameras casing, requiring an ultra-compact design.

4. Consistent Quality: Need for zero-defect mass production to maintain the brands high-quality reputation.

Tengxiangs Custom Solution

Leveraging our expertise in compact, high-sensitivity antennas, Tengxiang developed a tailored embedded WiFi antenna solution:

1. Wall-Penetrating & Long-Range: Optimized the antennas frequency and radiation pattern to enhance wall-penetrating capability, supporting stable signal transmission through 2 concrete walls. The transmission range was increased by 30% compared to industry averages.

2. Anti-Interference Design: Adopted frequency tuning technology to avoid signal conflict with 2.4G/5G WiFi devices, ensuring smooth video transmission.

3. Ultra-Compact Embedded Design: Developed an FPC (Flexible Printed Circuit) antenna with a thickness of only 0.8mm and dimensions of 25x15mm, fitting seamlessly inside the cameras casing.

4. Zero-Defect Production: Implemented full-process quality control, including 100% inspection before shipment, to achieve a zero-defect rate in mass supply.

Implementation & Testing

Tengxiangs R&D team worked closely with the client to integrate the antenna into their camera design, completing the prototype in 3 weeks. Field tests were conducted in residential buildings, offices, and commercial spaces, verifying the antennas wall-penetrating capability and signal stability.

The antenna also underwent rigorous laboratory tests, including VSWR testing, anti-interference testing, and durability testing—all meeting the clients global quality standards.

Project Outcomes

Enhanced Coverage: The 30% longer transmission range and wall-penetrating capability expanded the cameras surveillance coverage by 40%, eliminating blind spots.

Smooth Video Transmission: Anti-interference design reduced video lag by 90%, ensuring clear footage even in high-interference environments.

Product Success: The camera line became a best-seller globally, with the antenna contributing to a 25% increase in sales.

Zero-Defect Supply: Tengxiang maintained a zero-defect rate in mass production, supporting the clients brand reputation for quality.

Tengxiangs embedded WiFi antennas for security cameras combine long range, wall-penetrating capability, and compact design. Contact us to optimize your surveillance equipments communication performance.
